HCW High Capacity Swing Barrier Turnstile with 1S Open/Close Time and 4 Million Times Service Life for Pedestrian Access Control

  • HCW High Capacity Swing Barrier Turnstile with 1S Open/Close Time and 4 Million Times Service Life for Pedestrian Access Control
  • HCW High Capacity Swing Barrier Turnstile with 1S Open/Close Time and 4 Million Times Service Life for Pedestrian Access Control
  • HCW High Capacity Swing Barrier Turnstile with 1S Open/Close Time and 4 Million Times Service Life for Pedestrian Access Control
  • HCW High Capacity Swing Barrier Turnstile with 1S Open/Close Time and 4 Million Times Service Life for Pedestrian Access Control
  • HCW High Capacity Swing Barrier Turnstile with 1S Open/Close Time and 4 Million Times Service Life for Pedestrian Access Control
  • HCW High Capacity Swing Barrier Turnstile with 1S Open/Close Time and 4 Million Times Service Life for Pedestrian Access Control
  • HCW High Capacity Swing Barrier Turnstile with 1S Open/Close Time and 4 Million Times Service Life for Pedestrian Access Control
  • HCW High Capacity Swing Barrier Turnstile with 1S Open/Close Time and 4 Million Times Service Life for Pedestrian Access Control
  • HCW High Capacity Swing Barrier Turnstile with 1S Open/Close Time and 4 Million Times Service Life for Pedestrian Access Control
Place of Origin China
Μάρκα Hongchuangwei
Πιστοποίηση CE/ISO 9001
Model Number CW401
Minimum Order Quantity 2
Τιμή Διαπραγματεύσιμα
Packaging Details wood cases
Delivery Time 4-7 working days
Payment Terms T/T
Supply Ability 1000 pieces weekly

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Passing speed 30-40person/min Power supply AC220V±10%,50±10Hz
Material SUS 304 working environment -25℃ to 70℃
Dimension 1200 * 280 * 990mm open/ close time 1S
Relative humidity ≤90% no condensation Normal service life 4 million times
Επισημαίνω

High Capacity Swing Barrier Turnstile

,

1S Open/Close Time Pedestrian Swing Gate

,

4 Million Times Service Life Access Control Turnstile
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
HCW High Capacity Swing Barrier Turnstile
Bridge type swing gate single/two-way pedestrian swing turnstile with fast open/close time and stable performance, allowing up to 40 persons per minute.
Key Features
  • Constructed with thickened steel, customizable design with quality assurance - durable, waterproof and rustproof
  • Supports multiple recognition methods: face recognition, fingerprint recognition, QR code scanning, document recognition
  • Anti-collision function with automatic swing arm locking when no opening signal is detected
  • Fault prompt and self-check system for easier maintenance
  • Brushless motor for extended operational life
  • Configurable for one-way or two-way traffic flow
  • Ideal for smart community system solutions
Face Recognition Option
Enhances security and prevents identity impersonation through face collection, detection, feature extraction and comparison.
Technical Specifications
Product Model CW401
Voltage AC220V±10%, 50HZ±10% HZ
Working Temperature -25℃ to 70℃
Relative Humidity ≤90% (no condensation)
Motor Type Brushless Motor
Rated Power 40W
Input Control Signal Switch value (standard configuration does not include RS232, RS485)
Throughput Speed 30-40 persons/minute
Infrared Beam 1 Pair
Trouble-free Operations 2 million times
Average Lifespan 3 million times
Channel Width 600mm-1600mm
Door Wing Material ￠25mm Stainless steel
Product Size ￠200mm × height 1050mm
Channel Frame National standard 1.5mm 304 stainless steel
Package Weight Approx. 25 KG (single side road)
Product Images

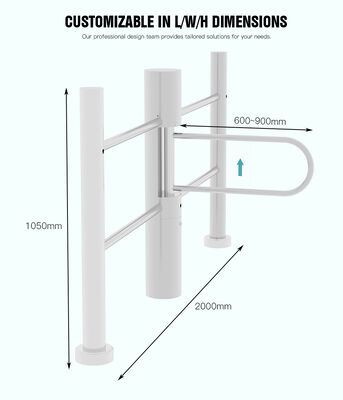

HCW High Capacity Swing Barrier Turnstile with 1S Open/Close Time and 4 Million Times Service Life for Pedestrian Access Control 0
HCW High Capacity Swing Barrier Turnstile with 1S Open/Close Time and 4 Million Times Service Life for Pedestrian Access Control 1
HCW High Capacity Swing Barrier Turnstile with 1S Open/Close Time and 4 Million Times Service Life for Pedestrian Access Control 2
HCW High Capacity Swing Barrier Turnstile with 1S Open/Close Time and 4 Million Times Service Life for Pedestrian Access Control 3
