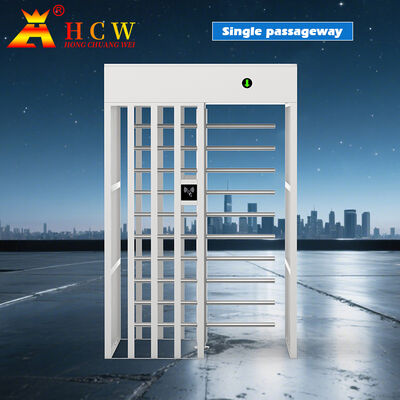

HCW Full Height Turnstile Security Gate with 600mm Channel Width RS232/RS485 Communication and ISO 9001/CE Certification
| Τόπος καταγωγής | Κίνα |
|---|---|
| Μάρκα | HCW |
| Πιστοποίηση | CE/ISO 9001 |
| Αριθμό μοντέλου | CW802 |
| Ποσότητα παραγγελίας min | 2 τεμάχια |
| Τιμή | Διαπραγματεύσιμα |
| Συσκευασία λεπτομέρειες | ξύλινη θήκη |
| Χρόνος παράδοσης | 5-8 ΕΡΓΑΣΙΜΕΣ ΗΜΕΡΕΣ |
| Όροι πληρωμής | T/T |
| Δυνατότητα προσφοράς | 100 τεμάχια την ημέρα |
Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.
xΛεπτομέρειες
| Brand name | HCW | Αριθμός μοντέλου | CW802 |
|---|---|---|---|
| Υλικό προϊόντος | 304 ανοξείδωτο ατσάλι | Μέγεθος προϊόντος | 1500*1500*2300mm |
| Εγγύηση | 1 Έτος | Πιστοποιητικό | ISO 9001/CE |
| Μοτέρ | 90 ° Πλήρης κίνηση ύψους | Θερμοκρασία εργασίας | -25℃~+70℃ |
| Διεπαφή επικοινωνίας | RS232/RS485 | Υλικό πτερυγίων πόρτας | Σωλήνας από ανοξείδωτο χάλυβα |
| Πλάτος καναλιού | 600 χλστ | Ταχύτητα Τρεξίματος | 40 άτομα/λεπτο |
| Επισημαίνω | 600mm Channel Width Full Height Turnstile,RS232/RS485 Communication Security Gate,ISO 9001/CE Certified Pedestrian Control System |
||
Περιγραφή προϊόντων
HCW Robust Full Height Turnstile Security Gate Suitable for Industrial Plants Commercial Complexes and Sports Arenas
Product Description

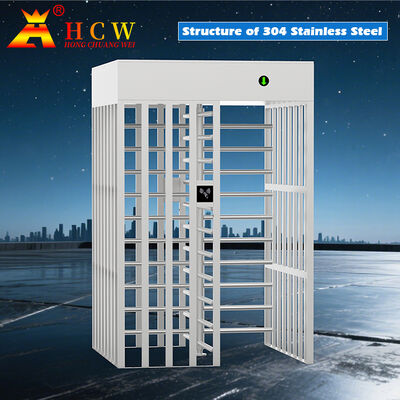

The HCW CW802 is a reliable full-height solution designed for secure access control in high-traffic areas. Built with durable SS304 stainless steel, this full height turnstile gate with LED indicators combines modern design with long-lasting performance. With a passage width of 600mm and a capacity of up to 40 people per minute, it ensures smooth flow while maintaining strict entry management.

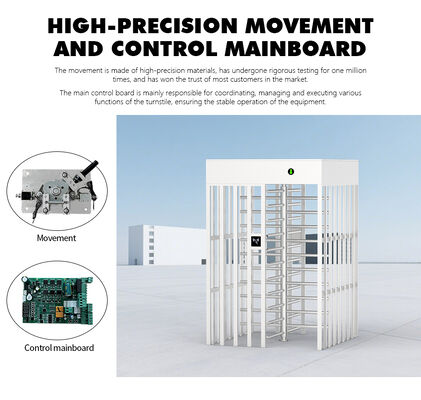

The advanced motor system provides low noise operation and a stable 90° rotation, creating a comfortable user experience. It also features an automatic reset function to enhance safety and prevent unauthorized access. Engineered to perform under extreme temperatures from -25℃ to +70℃, the CW802 guarantees dependable service with a lifespan of over 5 million cycles. Certified with ISO 9001 and CE, it represents an excellent balance of quality and affordability.
Specifications
| Brand name | HCW |
|---|---|
| Model number | CW802 |

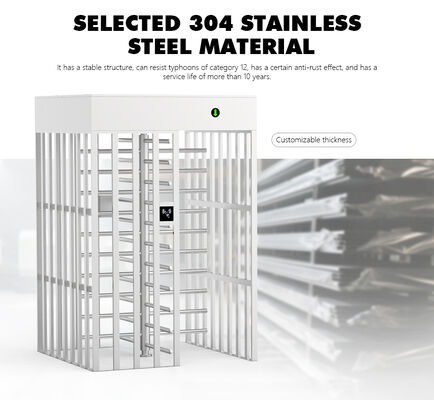

| Product material | 304 stainless steel |

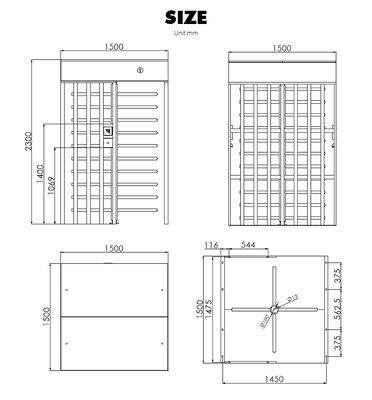

| Product size | 1500*1500*2300mm |
| Warranty | 1 Year |
| Certificate | ISO 9001/CE |
| Motor | 90°full height movement |
| Working temperature | -25℃~+70℃ |
| Communication interface | RS232/RS485 |
| Door wing material | Stainless steel pipe |
| Channel width | 600mm |
| Running speed | 40 people/minute |
| Normal service life | 5 million times |
Key Advantages
- Stable Power Supply - Operates on AC220V±10%, 50/60HZ, ensuring consistent performance across diverse environments.
- Accurate Flow Management - Equipped with an integrated counting function to provide real-time pedestrian statistics for efficient access control.
- Safe Power-Off Mechanism - The gate unlocks automatically during power failures, allowing free passage in emergencies to ensure user safety.
- Flexible Operating Modes - Features programmable gate control supporting both one-way and bidirectional passage, easily adaptable to project requirements.
- Seamless Integration - Designed with a customized installation interface, it is compatible with magnetic cards, barcode cards, ID cards, IC cards, and other access technologies.
Applications
- High-Security Facilities - Its full-height, robust 304 stainless steel construction and strict single-passage design are ideal for preventing unauthorized entry and tailgating at corporate buildings, factories, data centers, and laboratories, ensuring only credentialed personnel gain access.
- High-Traffic Transportation Hubs - With a capacity of 40 people per minute, this turnstile efficiently manages large pedestrian flows in metros, airports, and train stations, enabling smooth entry and exit while maintaining reliable ticket or access control.

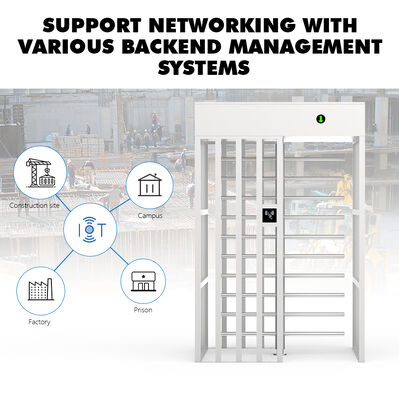

- Integrated Access Control Sites - Featuring versatile integration with card and biometric systems, it is perfectly suited for offices, government buildings, and stadiums. This allows for seamless credential verification and includes a safe power-off unlock feature for emergency egress.
Product Gallery
